TRIPLE POD TRANSMISSION
The triple pod drive installation equipped with supercharged and turbocharged engines for maximum performance. Smaller in dimension and lower in weight when compared to traditional shaft-drive configurations. Engines located at the aft of the vessel, thereby freeing up large amounts of space now available to enhance onboard liveability. Duo forward-facing and counter-rotating propellers, eliminate vibration, maximise thrust and neutralise directional deviation. Forward facing props maximise efficiency from undisturbed waters compared to turbulence generated by fixed shaft underwater gear.

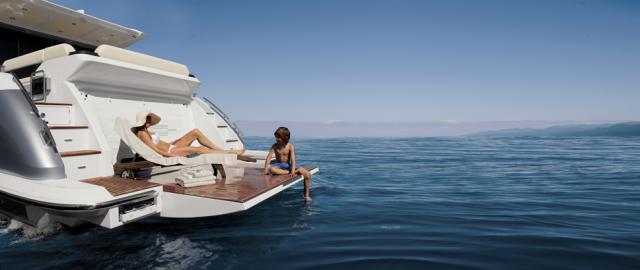

NEW TRANSOM PIVOTING SYSTEM
The stern garage door is a single integral structure combining the swim platform. When opened, the garage door exposes the 2 metre wide teak laid swim platform which may be submerged and disappears beneath the stern. With an additional movement the garage door may be further inclined to launch and recover the jet tender.
CARBON FIBER STRUCTURES
In order to reduce weight and improve performance, innovative hi-tech construction materials such as carbon-fibre are utlised, strengthening floor panels and other structural elements.
The overall result is that structural bulkheads of the master cabin, engine room, garage and the whole overall superstructure boast greater solidity and strength and ensuring high-level performance.
INTEGRATED GARAGE FOR JET TENDER
The garage structure is entirely moulded out of carbon-fibre and offers optimal storage for a Williams 285 Jet Tender.
The development of a specialised tender hauling and launching system offers easy-of-use and safety to the end user.
AZIMUT 55S won two Awards...
the Made in Italy imposed itself with the new AZIMUT 55S. Two awards won at the 2012 World Yacht Trophy
Two prestigious awards confirm the success of the Azimut Benetti Group at the Festival de la Plaisance in Cannes where 21 models were displayed, 4 of which were worldwide premieres.
Azimut 55S has been crowned as queen of the gala night winning the 2012 Most Innovative Yacht Award and The Best Layout & Interior design Award.
''These two awards demonstrate the commitment of the Yard in investing in innovation and research, to offer its customers products that are the most advanced in terms of design, quality and innovation'' said Paolo Casani, CEO of AZIMUT YACHTS
Azimut 55S - Technical characteristics (Data refers to UNI ISO 8666 conditions)
|
Length overall (incl. pulpit) |
17.29 m (56' 9'') |
|
Hull length (incl. platform) |
16.60 m (54' 5'') |
|
Beam at main section |
4,70 m (15' 5'') |
|
Draft (incl. props at full load) |
1.14 m (3' 9'') |
|
Displacement (at full load) |
23.22 t |
|
Engines |
3 x 435 mHP (320 kW) VOLVO D6 - IPS 600 |
|
Maximum speed (performance test mass) |
36 kn |
|
Cruising speed (performance test mass) |
30 kn |
|
Fuel capacity |
1600 l (423 U.S. Gal) |
|
Water capacity |
590 l (156 U.S. Gal) |
|
Cabins |
3 + 1 |
|
Berths |
6 + 1 |
|
Head compartments |
2 + 1 |
|
Building material |
VTR/GRP and carbon fiber |
|
Exterior styling & concept |
Stefano Righini |
|
Interior designer |
Carlo Galeazzi |
|
Keel |
V-shape with angle of deadrise 15.8° aft |
|
Builder |
Azimut Yachts
|
